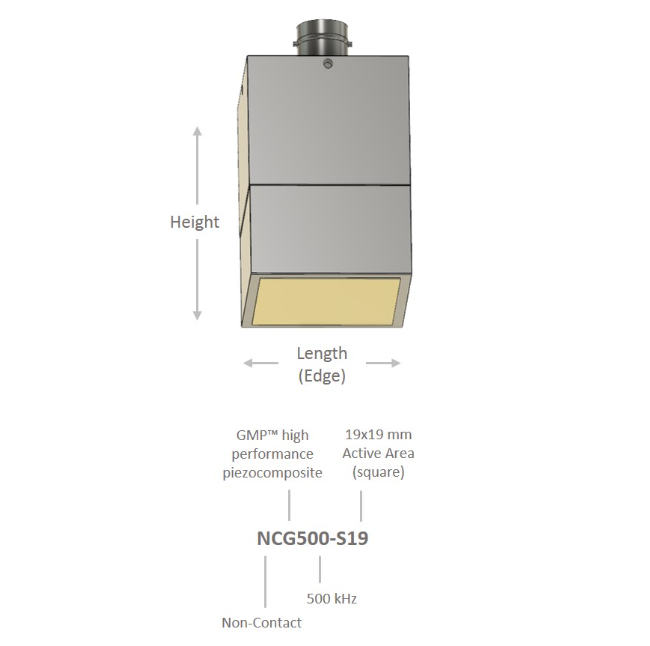

The Ultran Group Square Transducers Designed for use in air and other non-corrosive gaseous environments. All units built standard with aluminum housing and BNC connectors. Models at frequencies of 500 kHz and lower include Ultran proprietary gas matrix piezoelectric (GMP™) composite. Models at 700 kHz and higher built with high performance polymer-based piezocomposite.
The Ultran Group 设计方形换能器用于空气和其他非腐蚀性气体环境。所有装置均标配铝制外壳和 BNC 连接器。频率为 500 kHz 及更低的型号包括 Ultran 专有的气体基质压电 (GMP™) 复合材料。700 kHz 及更高频率的型号采用高性能聚合物压电复合材料构建。
| 13×13 mm | 19×19 mm | 25×25 mm | 38×38 mm | 50×50 mm | 63×63 mm | 100×100 mm | |
|---|---|---|---|---|---|---|---|
| 30 kHz | NCG30-S19 | NCG30-S25 | NCG30-S38 | NCG30-S50 | NCG30-S63 | NCG30-S100 | |
| 50 kHz | NCG50-S13 | NCG50-S19 | NCG50-S25 | NCG50-S38 | NCG50-S50 | NCG50-S63 | NCG50-S100 |
| 100 kHz | NCG100-S13 | NCG100-S19 | NCG100-S25 | NCG100-S38 | NCG100-S50 | NCG100-S63 | NCG100-S100 |
| 140 kHz | NCG140-S13 | NCG140-S19 | NCG140-S25 | NCG140-S38 | NCG140-S50 | NCG140-S63 | NCG140-S100 |
| 200 kHz | NCG200-S13 | NCG200-S19 | NCG200-S25 | NCG200-S38 | NCG200-S50 | NCG200-S63 | NCG200-S100 |
| 350 kHz | NCG350-S13 | NCG350-S19 | NCG350-S25 | NCG350-S38 | NCG350-S50 | NCG350-S63 | |
| 500 kHz | NCG500-S13 | NCG500-S19 | NCG500-S25 | NCG500-S38 | NCG500-S50 | NCG500-S63 | |
| 700 kHz | NCT700-S13 | NCT700-S19 | |||||
| 1 MHz | NCT1-S13 | NCT1-S19 | NCT1-S25 | ||||
| 2 MHz | NCT2-S13 | NCT2-S19 | |||||
| 3 MHz | NCT3-S13 | ||||||
| 4 MHz | NCT4-S13 | ||||||
| 5 MHz | NCT5-S13 |
